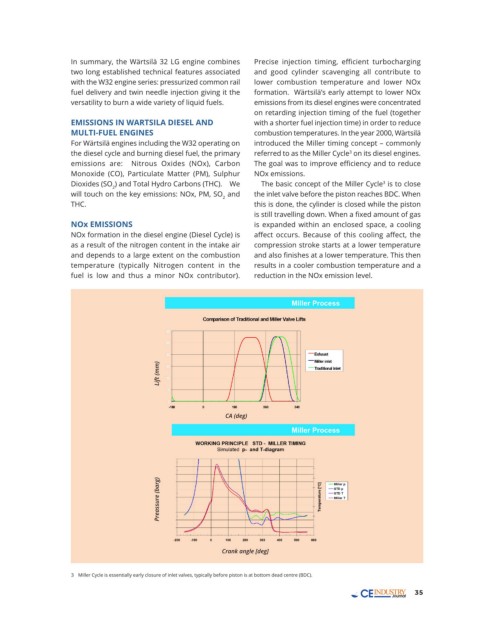

In summary, the Wärtsilä 32 LG engine combines Precise injection timing, efficient turbocharging
two long established technical features associated and good cylinder scavenging all contribute to
with the W32 engine series: pressurized common rail lower combustion temperature and lower NOx
fuel delivery and twin needle injection giving it the formation. Wärtsilä’s early attempt to lower NOx
versatility to burn a wide variety of liquid fuels. emissions from its diesel engines were concentrated
on retarding injection timing of the fuel (together
EMISSIONS IN WARTSILA DIESEL AND with a shorter fuel injection time) in order to reduce
MULTI-FUEL ENGINES combustion temperatures. In the year 2000, Wärtsilä
For Wärtsilä engines including the W32 operating on introduced the Miller timing concept – commonly
the diesel cycle and burning diesel fuel, the primary referred to as the Miller Cycle on its diesel engines.
3
emissions are: Nitrous Oxides (NOx), Carbon The goal was to improve efficiency and to reduce
Monoxide (CO), Particulate Matter (PM), Sulphur NOx emissions.
Dioxides (SO ) and Total Hydro Carbons (THC). We The basic concept of the Miller Cycle is to close
3
2
will touch on the key emissions: NOx, PM, SO and the inlet valve before the piston reaches BDC. When
2
THC. this is done, the cylinder is closed while the piston
is still travelling down. When a fixed amount of gas
NOx EMISSIONS is expanded within an enclosed space, a cooling
NOx formation in the diesel engine (Diesel Cycle) is affect occurs. Because of this cooling affect, the
as a result of the nitrogen content in the intake air compression stroke starts at a lower temperature
and depends to a large extent on the combustion and also finishes at a lower temperature. This then
temperature (typically Nitrogen content in the results in a cooler combustion temperature and a
fuel is low and thus a minor NOx contributor). reduction in the NOx emission level.

Lift (mm)

CA (deg)

Preassure (barg)

Crank angle [deg]

3 Miller Cycle is essentially early closure of inlet valves, typically before piston is at bottom dead centre (BDC).
